The CTE-170 offers a working height of 17 metres and outreach of over 7 metres.

The CTE  Traccess 170 Platform Basket MEWP powered by a 110V 2.2kW electric auxiliary motor or the diesel engine.
It has an articulated boom (with 2 elements), a telescopic boom (main boom + 2 extension) and a Jib, which enable a working height of 17 metres and Max outreach of 7.5 metres. The CTE 170 has Dual drive speed and Electro-hydraulic steering from the ground via umbilical remote control system, and individual proportional electrohydraulic controls in basket. The basket measures 1300x700x1100 and is self levelling.

Variable jacking via 4 hydraulic outriggers enables use in restrictive environments even with uneven ground.



Working Height - 17m

Outreach - 7.5m

G.V.W - 2050kg

Platform Capacity - 200kg

Platform Capacity - 2 persons

Stowed Machine Dimensions - W0.8m x H2.0m x L4.3m

Turret & Cage Rotation - 330° & +/-90

CTE-T170 for Hire: Hire CTE-T170
CTE-T170 for Sale: Buy CTE-T170

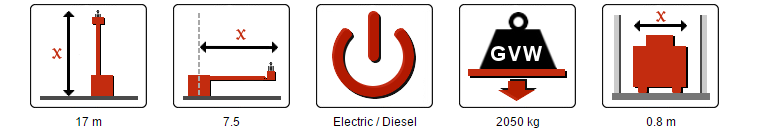

Key Characteristics
